Periscape 4

PERISCAPE 4
Find a Reseller
In stock

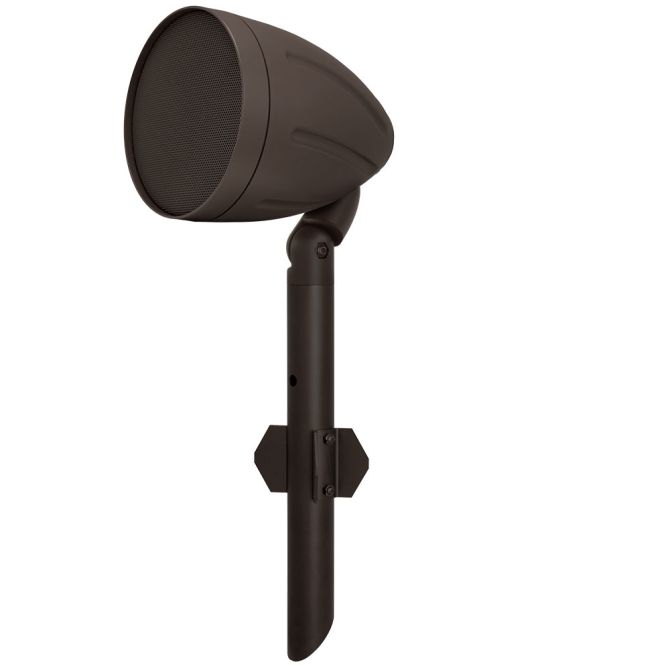

Rockustics 4.5" 2-way Outdoor Landscape Speaker

Rockustics Outdoor Periscape 4 Speaker

With 50 watts (RMS) of power, the Periscape 4 gives you an attractive, discreet way to distribute audio throughout an outdoor setting. This 4.5", 2-way speaker is fully weatherproof and is easily installed via a spike mount. Applications include outdoor living spaces, hotel pool areas, courtyards, outdoor malls, or outdoor seating areas for restaurants or cafes. Systems may be configured with any number of Periscape speakers, with a minimum suggested complement of 4 Periscape units and one Subscape subwoofer; additional subwoofers are recommended for installations using more than 8 Periscape speakers. All models have 70V transformers with tap settings for 70.7 or 100 V operation; a transformer bypass setting allows operation in 8 ohm direct modes. IP-Rating: IPX5.

Owner's Manual |  Tech Sheet |  Escape Series Cut Sheet |  Outdoor Solutions Brochure |  PDF Drawing

About Rockustics
More Information
ColorBrown
UPC748252172969
ManufacturerRockustics
Manufacturer's CategoryLandscape Speakers
Height17.75 in / 450.85 mm
Shipping Weight5.95 lbs / 2.7 kg
Carton Height9 in / 228.6 mm
Carton Length11.75 in / 298.45 mm
Carton Width9.75 in / 247.65 mm
CertificationsCE, RoHS
Included AccessoriesAssembly Hardware, Wire Nuts
Optional AccessoriesSurface Mount Bracket (AC-RPSMB)|Pole Mount Extension (AC-RPEXT)
Source InputsWire Leads
IP RatingIPX5
TAA Compliant (Trade America)No
BAA Compliant (Made in USA)No
Frequency Response (± 10 dB)50 Hz - 22 kHz
Frequency Response (± 3 dB)85 Hz - 22 kHz
Grille PropertiesAluminum, Powder-Coated
Max. Continuous Power RMS50 W
Max. Program Power100 W
Minimum Impedance (Ω Ohms)8 Ω
Nominal Impedance (Ω Ohms)8 Ω
Tweeter Driver.75" Titanium Dome
Woofer Driver4" Polypropylene Cone with Butyl Rubber Surround
Sensitivity dB @ 1W/1M83 dB
Sensitivity dB @ 2.83V/1M83 dB
Tap SelectorRotary Switch
Transformer Options70.7 / 100 V, 8 Ohm direct
