SS-Q-8-WH
Soundsphere Q-8 Loudspeaker in White
The Soundsphere Q-8 offers high sensitivity and power handling capabilities restaurants, bars, nightclubs, hotel lobbies, atriums, factories, courtrooms, gymnasiums, educational facilities, churches, retail stores, shopping centers, airports, and applications where clear voice announcements and high-fidelity music are required. The Model Q-8 is more robust than our compact Soundsphere loudspeakers models, offering greater sensitivity and power-handling capability. The Q-8 was designed to provide clear voice announcements and high-fidelity foreground and background music for applications. The Q-8 offers Soundsphere®'s trademark hemispherical coverage pattern and is distinguished by its high sensitivity (94dB 1W/1m) and high power handling capability (100 watts RMS). The Q-8 is available for either surface or hanging mounts.
Owner's Manual | Tech Sheet | Mechanical Drawing | GLL | Distributed System Quick Planning Guide
About SoundsphereColor | White |
---|---|
UPC | 752830437982 |
Manufacturer | Soundsphere |
Manufacturer's Category | Spherical Loudspeakers |
Height | 19.02 in / 483 mm |
Width/Diameter | Sphere: 15.98 in / 406 mm |
Shipping Weight | 30 lbs / 13.6 kg |
Carton Height | 22 in / 558.8 mm |
Carton Length | 22 in / 558.8 mm |
Carton Width | 22 in / 558.8 mm |
Certifications | CCC, CE, RoHS |
Enclosure Properties | Fiberglass, Sealed |
Optional Accessories | Hanging Hardware |
Source Inputs | Wire Leads |
TAA Compliant (Trade America) | Yes |
BAA Compliant (Made in USA) | Yes |
Crossover Frequency | 1.5 kHz |
Frequency Response (± 10 dB) | 80 Hz - 20 kHz |
Low Frequency Voice Coil | 2 in / 50.8 mm |
Max. Continuous Power RMS | 100 W |
Max SPL @ 1M | 113dB |
Network Type: High Pass | First order |
Nominal Impedance (Ω Ohms) | 8 Ω |
Tweeter Driver | .75" Mylar Dome |
Woofer Driver | 8" Polypropylene Cone w/ Butyl Rubber Surround |
Power for Max SPL | 100 W |
Sensitivity dB @ 1W/1M | 93 dB |
Sensitivity dB @ 2.83V/1M | 93 dB |

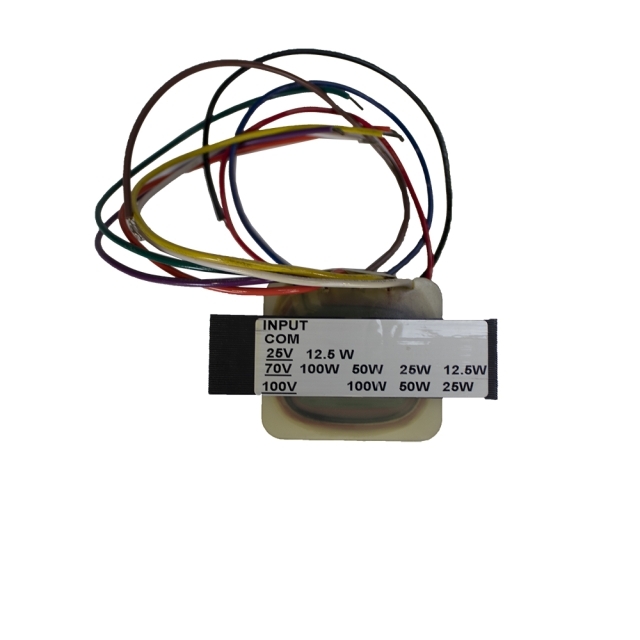

Transformer Taps Max. Setting (25V/70.7V/100V) | 25W/100W/100W |
